Dielectric Frequency Response (DFR) Analysis

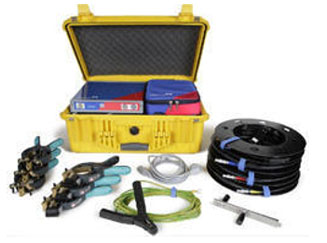

DIRANA

FDS-PDC dielectric response analyzer
DIRANA can determine the condition of high-voltage insulation systems like in power transformers, bushings, cables and generators with dielectric response analysis. With DIRANA you can analyze the water content and the oil conductivity in different kind of cellulose insulation. You can test assets filled with mineral oil, natural and synthetic ester as well as air or vacuum. The measurement results are shown in categories defined by IEC 60422. DIRANA combines Frequency Domain Spectroscopy (FDS) and an advanced version of Polarization Depolarization Current (PDC+) measurement. In combination with the automated frequency range setting DIRANA ensures the shortest measurement time on all assets at any temperature.

Key features

• Revolutionary new FDS & PDC+ algorithm for up to 20x faster testing: Less than 2 hours for a full 10 µHz – 1 kHz frequency sweep
• Fully automatic parameter setting and improved moisture assessment for optimal results
• Support of ester filled assets due to new databases for synthetic and natural ester
• Guided workflow for test setup, execution and assessment for easy analysis without expert knowledge
• Compact all-in-one test set.


• Now a days two approaches are applied; the measurement of charging and discharging currents in time domain (Polarization and Depolarization Currents PDC) and the dielectric spectroscopy in frequency domain (Frequency Domain Spectroscopy FDS) known as DIRANA & provides an indication of the insulation condition such as:

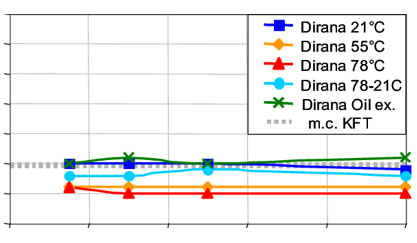

• Moisture content in the oil/paper insulation
• Faults in OIP, RBP and RIP high voltage bushings & CT.
• Faults in the generator, motor and cable insulation
• Monitoring of moisture content in solid insulation during maintenance actions such as On- site drying will be very effective and should be considered as an important application.
